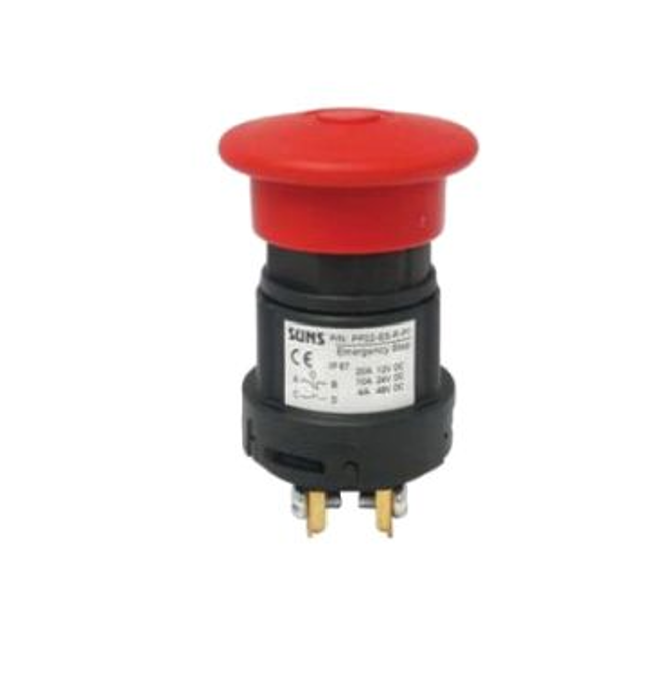

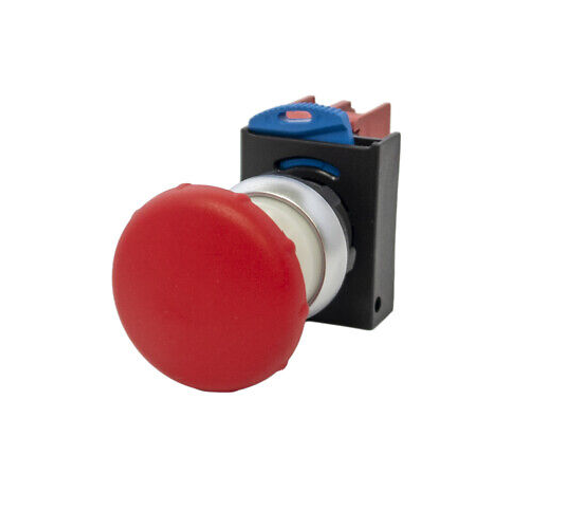

Emergency Stop Switch Kit, Push Pull, 22mm Bore
SKU: 7SW-SUN-PP22-ES-R-P8
$41.20$45.00
In Stock - Ships within 24hrs
1
Certified Crushin'
Field-Tested in Almo, KY
Two-year warranty. Real humans on the phone.
30-Day Guarantee
Easy Returns
Secure Checkout
Description
Emergency Stop Switch Kit, Push Pull, 22mm Bore
Features:
- Robust design for harsh environment
- Dual O-ring protecting the contact from any contaminant
- Self-cleaning, sliding contacts
- Resistant to impact, vibration and shock
- Deutsch 4 pin connector available
- IP67 rated
P22 PUSH-PULL AND E-STOP SWITCHES | PP22-ES-R-P8
| Rated Voltage | 12VDC, 24VDC. 48VDC, C300 |
| Current | 20A@12V, 10A@24V, 4A@48V |
| Current, Min. | 0.1A, resistive |
| Dielectric | 500Vdc or 707Vdc for 1 minute, 5mA max. |
| Voltage Drop | 1Vdc at rated dc loads, max. |
| Operating Force | ~27N |
| Life | 25,000 cycles at rated load |
| Handle Shock | 1m[39.37in] drop to hard surface |
| Vibration | 10g max., 18Hz to 1000Hz |
| Humidity | 95% non-condensing |
| UV Color Fade | DE 3 max. at 15,000 hours UVB, |
| Temperature | ASTM G 154-06 |
| (Operating) | -40oC~+85oC (-40~+185oF) |
| Temperature | -40oC~+85oC (-40~+185oF) |
| (Storage) | IP67 |
| Sealing | Picture and Dimensions: |
Specifications
| Product Type | Accessories |
| Brand | Crushin Off Road |
| SKU | 7SW-SUN-PP22-ES-R-P8 |
| Tags | Emergency StopSwitches |
