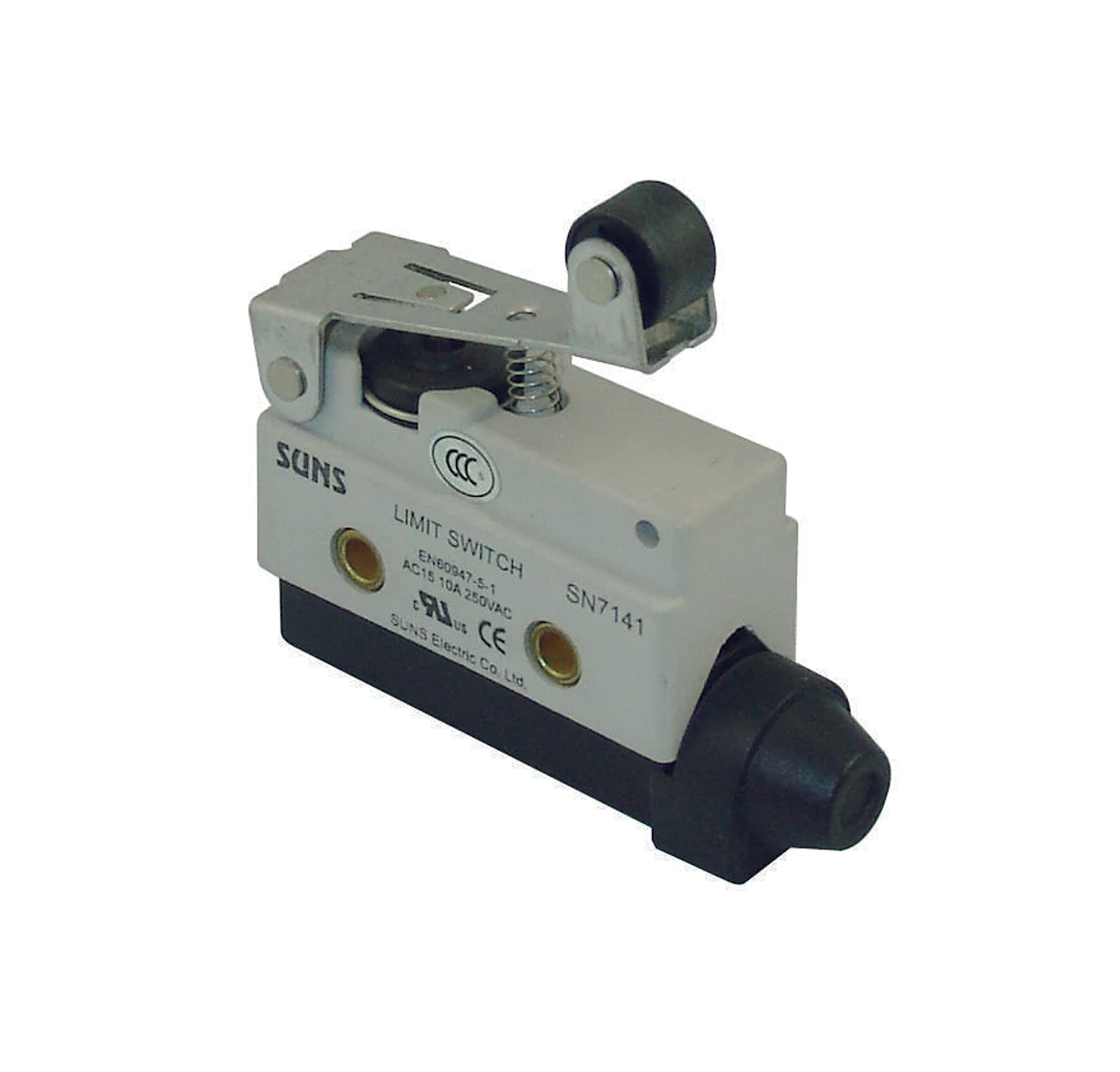

Mini Enclosed Roller Limit Switch, IP67, On-Off

Mini Enclosed Roller Limit Switch, IP67, On-Off

Specifications:

High Quality Short Roller Leveraged Type 3 Pins Silver Alloy Screw Terminals Basic Form SPDT 250V 10A Micro Switch

• Operating Speed: 0.05mm-0.5m/sec(panel mount plunger)

• Operating Frequency: Mechanical: 120ops/min Electrical: 30ops/min

• Contact Resistance: <15mΩ(initial value)

• Insulation Resistance: >100mΩ@500V DC

• Rated Voltage: 250VAC

• Rated Current: 10A

• Operating Temperature: -20 ~ +60°(-4~+140°F)

• Dielectric Strength: 1000V AC (for 1 min) between current carrying parts 2000V AC (for 1 min) between non-current carrying parts

• Service Life: Mechanically 10,000,000, Electrically 500,000

• Humidity: <95%RH

• Weight: ~60g

• Degree of Protection: IP64 (IP67 for model with -w suffix)
